Comprehensive hardware diagnostics pinpoint thermal throttling.
We isolate cooling bottlenecks on North Tryon Street using live Cinebench multi-core stress runs, Furmark GPU heat saturation, and low-level drive health logging.
What happens during a bench diagnostic session?

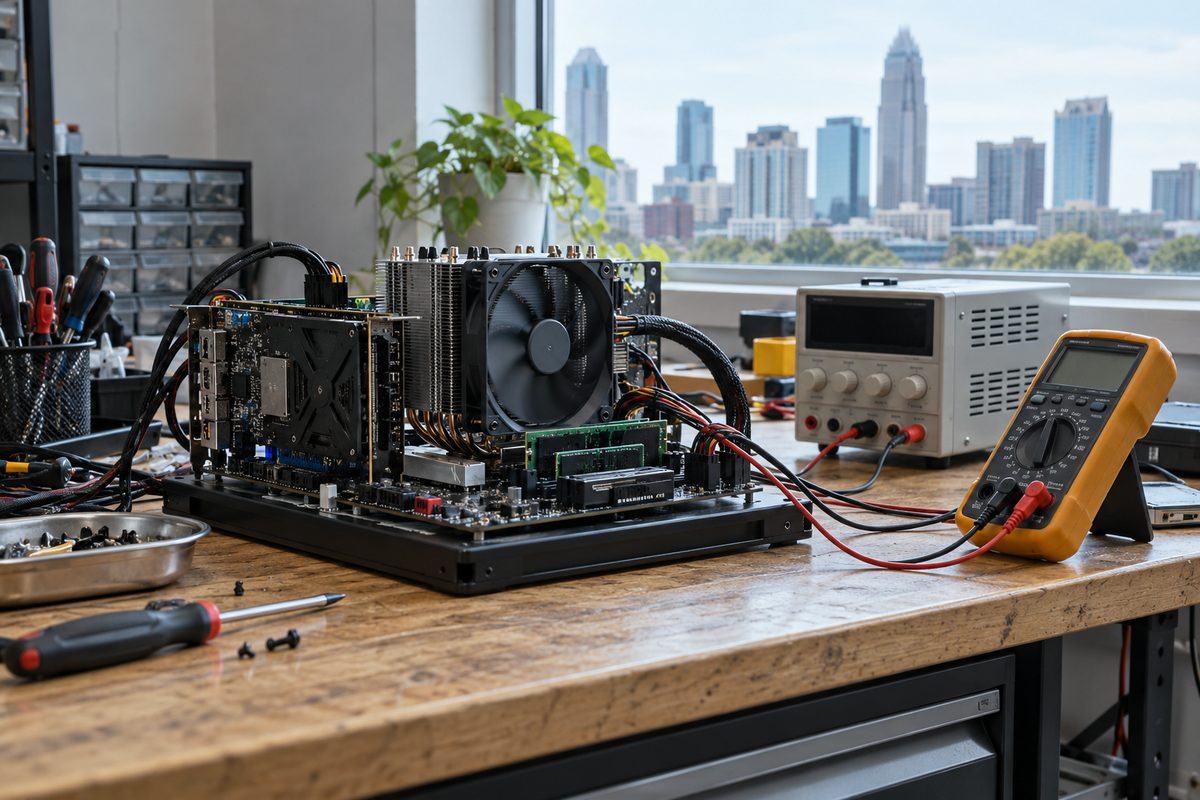

We run hardware diagnostics to determine why a computer runs hot, stutters during sustained workloads, or shuts down without a blue-screen notice. Rather than guessing, we mount the machine onto our grounded test bench at 1210 North Tryon Street in Charlotte and run isolated load profiles against each sub-assembly.
A typical diagnostic inspection takes 1 to 2 hours. We verify ambient chassis air temperatures, record fan tachometer feeds at stepped voltage levels, and verify whether copper heatpipes have lost internal vacuum pressure.
- Core load validation: Running 100% AVX workload loops to log processor junction temperatures and clock throttling limits.
- Silicon hotspot delta: Measuring the difference between edge sensors and central hotspot diodes on modern graphics cards.
- Electrical supply stability: Checking 12V, 5V, and 3.3V rail ripple under sustained load with workshop multimeter probes.
How does thermal throttling degrade processor performance?
When dust blocks cooling fins or thermal paste dries into porous clay, modern silicon automatically reduces its clock speed to prevent permanent silicon death. An Intel Core i7 or AMD Ryzen chip designed to run at 4.8 GHz will silently downclock to 2.2 GHz once core junction temperatures touch 100 degrees Celsius. You lose more than half your computing throughput while fans scream at maximum RPM.
During preventative pc maintenance, our diagnostics identify whether your performance bottleneck stems from radiator clogging, dried compound, poor mounting pressure, or uneven heat-sink plate contact. We log clock frequency against core wattage to deliver clear telemetry before and after cleaning.
Why do we inspect fan bearings and storage drive telemetry?
Fan failure is the most common mechanical breakdown in desktop towers and laptops. Sleeved and fluid-dynamic bearings dry out over two to three years of daily operation, causing axial wobble, rattling noise, and sudden motor seizure.
Simultaneously, solid-state drives and hard disks suffer from heat-induced cell decay. We extract low-level SMART telemetry to evaluate spare block reserves, media wear indicators, and CRC error counts that traditional operating system checks ignore.
| Subsystem Checked | Bench Test Procedure | Failure Threshold | Standard Rectification |
|---|---|---|---|
| CPU Thermal Stack | 10-minute Cinebench multi-core stress cycle | Junction temperature above 95°C with >15% clock drop | Noctua NT-H2 or Arctic MX-6 compound repasting |
| GPU Cooler & VRM | Furmark stress test with hotspot sensor monitoring | Delta between edge and hotspot exceeding 25°C | Heatsink de-dusting and high-performance pad replacement |
| Chassis & Radial Fans | Optical tachometer scan & bearing spin run-out test | Bearing squeal, friction drag, or RPM drop below 80% | Shaft cleaning, relubrication, or direct fan swap |
| Storage Devices | SMART controller register dump & health read | Reallocated sectors or endurance threshold depletion | Immediate backup recommendation and drive cloning plan |
Who provides this diagnostic work in Charlotte?
All hardware diagnostics and preventative maintenance are conducted by our dedicated computer cleaning and servicing technician, operating continuously in Charlotte since 2024. Cleaneeus Workshop is a registered US business operating out of our dedicated bench location at 1210 North Tryon Street.
Every diagnostic evaluation and follow-up cleaning service is backed by our strict 90-day hardware workmanship warranty. If thermal throttling re-occurs or fan clearance shifts within 90 days of our service, we inspect and resolve it on the bench at no additional labor cost.
What hardware issues are not covered under preventative maintenance?
We are straightforward about what our workshop handles. We specialize in hardware cleaning, dust removal, thermal paste renewal, bearing inspection, and cooling troubleshooting.
We do not perform board-level micro-soldering, BGA reballing of dead graphics chips, or cracked LCD matrix replacement. If our diagnostics reveal that your graphics card has blown a MOSFET or your motherboard has a cracked power trace, we provide an honest hardware report so you do not waste money cleaning defective components.
Schedule a Hardware Diagnostic Session
Drop off your tower or notebook at our North Tryon Street workshop or request an on-site evaluation in Charlotte. Diagnostics run $75–$125 per hour, or are included with comprehensive cleaning.
